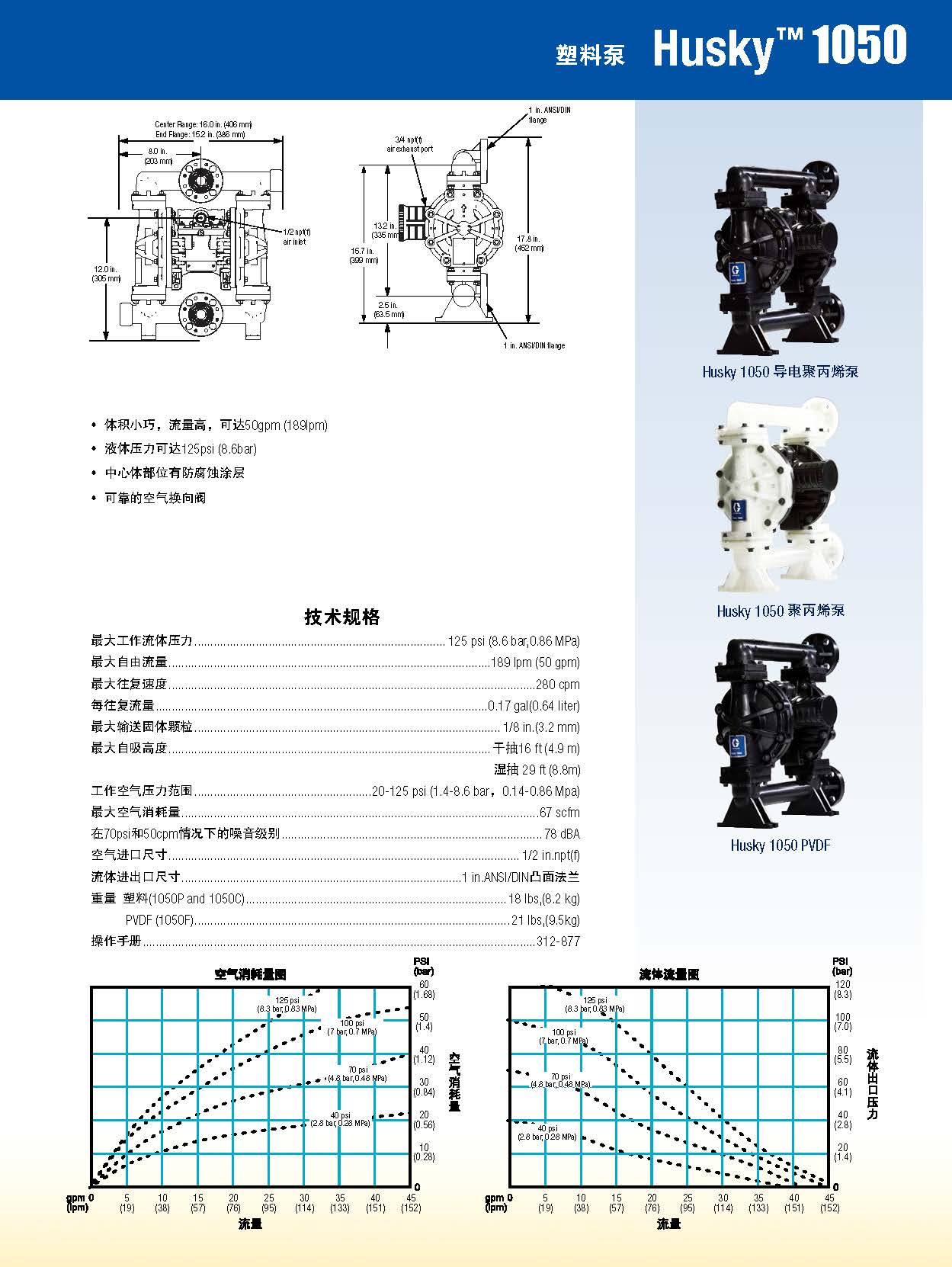

最大自由流量 ....................................................................................................189 lpm (50 gpm)

最大往复速度 ..................................................................................................................280 cpm

每往复流量 .......................................................................................................0.17 gal(0.64 liter)

最大输送固体颗粒 ............................................................................................... 1/8 in.(3.2 mm)

最大自吸高度 .................................................................................................... 干抽16 ft (4.9 m)

湿抽 29 ft (8.8m)

工作空气压力范围 .......................................................20-125 psi (1.4-8.6 bar，0.14-0.86 Mpa)

最大空气消耗量 ...............................................................................................................67 scfm

在70psi和50cpm情况下的噪音级别 ................................................................................. 78 dBA

空气进口尺寸 ............................................................................................................. 1/2 in.npt(f)

流体进出口尺寸 .......................................................................................1 in.ANSI/DIN凸面法兰

重量 塑料(1050P and 1050C) ................................................................................. 18 lbs,(8.2 kg)

PVDF (1050F) .................................................................................................. 21 lbs,(9.5kg)

操作手册 ..........................................................................................................................312-877
